1-liter Entry-level PC Powered by Advanced 14th Gen CPU

The Shuttle DH610S supports Intel® 14th Gen Core™ Raptor Lake Refresh processors and 13th Gen LGA1700 Alder Lake processors, featuring dual-channel DDR4-3200 memory (Max. 64GB). Additionally, it can integrate the UHD Graphics 700 series to enhance video processing and elevate visual experiences. This model supports two 4K displays and includes multiple I/O ports and two M.2 expansion slots for exceptional productivity and reliable operation. It is an affordable and ideal option for simple digital signage, office, and thin-client use.

Intel® 14th Gen Processor Compatibility

Built on the H610 chipset, DH610S supports the latest Raptor Lake Refresh (14th Gen) processors, delivering enhanced efficiency and multi-threading capabilities. With integrated Intel® UHD Graphics, the DH610S enhances immersive experiences, making it suitable for various digital signage applications and office scenarios.

Upgrade to 14th Gen Intel CPU Now!
● Up to 24 cores: 8 Performance-cores and 16 Efficient-cores
● Supports Intel® Thread Director for optimal multitasking
● Maximized 32 threads and peak clock speed up to 5.8GHz via 120W power
● Advanced connectivity options like Wi-Fi 7

Multiple Displays Productivity

DH610S supports two independent displays via a built-in HDMI 2.0b and a DisplayPort output. Moreover, an optional accessory PVG01 can be chosen to offer an optional VGA port, providing productivity benefits for multitasking and digital signage applications.

Strong Expansion Capacity with M.2

With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610S offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.

Excellent and Flexible Connectivity

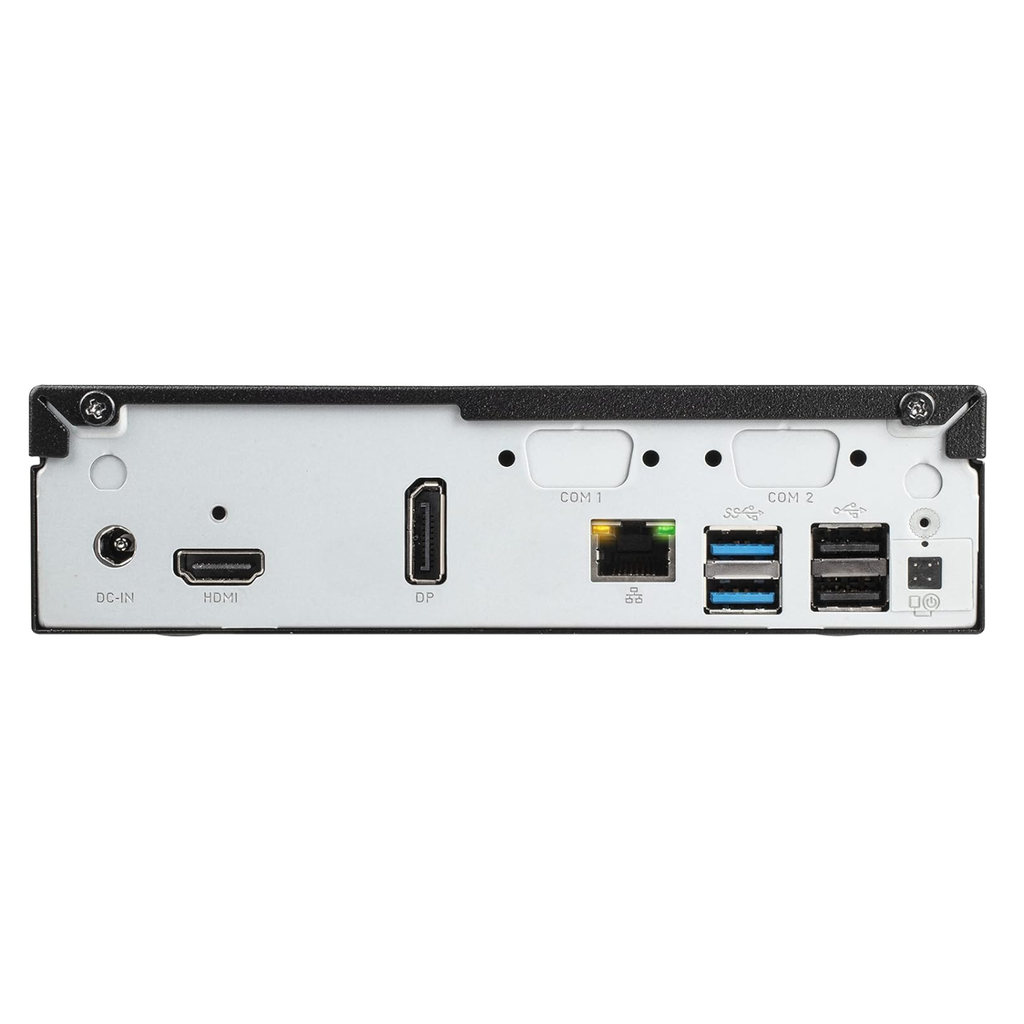

DH610S features flexible connectivity options for four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and an Intel® 1GbE Lan that support Wake on LAN functions.

Exclusive Cooling Technology

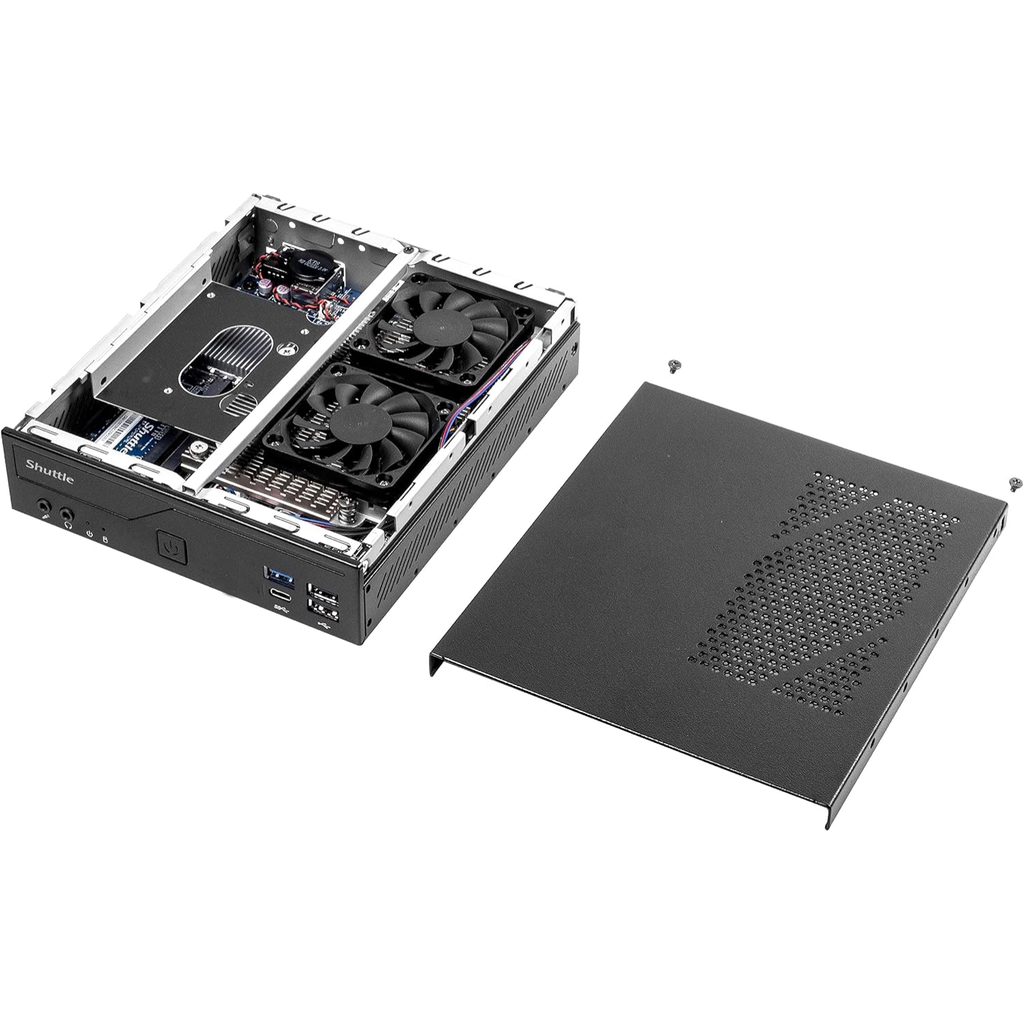

DH610S features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux
